STM32MP2 microprocessor series with up to dual Arm Cortex®-A35 and Cortex®-M33 cores.
The STM32MP2 series can now support you to design richer applications with enhanced performance, more security, and advanced edge AI capabilities:
- Select, train, optimize and benchmark your AI model with AI tools
- Create and deploy your application with X-LINUX-AI
- On STM32 MPU hardware tools
With its NPU accelerator, is it now possible to run AI applications on either the CPU, GPU, or NPU. Additionally, it supports high-end edge computing use cases, such as machine vision, through its multimedia capabilities.
STM32MP2 microprocessor series with up to dual Arm Cortex®-A35 and Cortex®-M33 cores.
The series is specifically designed to fit the needs of Industry 4.0 applications, including smart factories, cities, and buildings, as well as for advanced HMI applications.
This second generation of STM32 application processors opens the door to higher performances with a 64-bit platform now, specifically designed for industrial applications requiring chip robustness in a connected and secure environment.
- The STM32MP2 microprocessor portfolio comes in two main configurations:
- The STM32MP25x product line supports the growth of connected applications with extended connectivity: Ethernet switch, TSN support, PCIe, USB3, LVDS, DSI, and parallel as display interfaces. It also offers camera interfaces (CSI, parallel), with image signal processor (ISP).
- The STM32MP23x product line, a cost-optimized derivative of STM32MP25x, offers up to 1.5 GHz & (LP)DDR4, enhancing performance compared to the previous generation product (STM32MP15) with AI, graphics, and video accelerators.
This product offers advanced edge AI capabilities with its NPU accelerator and the flexibility to run AI applications on either the CPU, GPU, or NPU. Additionally, it supports high-end edge computing use cases, such as machine vision, through its multimedia capabilities. This is enabled by the whole ST edge AI ecosystem offer.
It supports a wide junction temperature range, from - 40°C to 125°C, making it ideal for industrial and harsh environments.
The STM32MP2 series can now support you to design richer applications with enhanced performance, more security, and advanced edge AI capabilities:
- Select, train, optimize and benchmark your AI model with AI tools
- Create and deploy your application with X-LINUX-AI
- On STM32 MPU hardware tools
With its NPU accelerator, is it now possible to run AI applications on either the CPU, GPU, or NPU. Additionally, it supports high-end edge computing use cases, such as machine vision, through its multimedia capabilities.
The series is specifically designed to fit the needs of Industry 4.0 applications, including smart factories, cities, and buildings, as well as for advanced HMI applications.
This second generation of STM32 application processors opens the door to higher performances with a 64-bit platform now, specifically designed for industrial applications requiring chip robustness in a connected and secure environment.
- The STM32MP2 microprocessor portfolio comes in two main configurations:
- The STM32MP25x product line supports the growth of connected applications with extended connectivity: Ethernet switch, TSN support, PCIe, USB3, LVDS, DSI, and parallel as display interfaces. It also offers camera interfaces (CSI, parallel), with image signal processor (ISP).
- The STM32MP23x product line, a cost-optimized derivative of STM32MP25x, offers up to 1.5 GHz & (LP)DDR4, enhancing performance compared to the previous generation product (STM32MP15) with AI, graphics, and video accelerators.
This product offers advanced edge AI capabilities with its NPU accelerator and the flexibility to run AI applications on either the CPU, GPU, or NPU. Additionally, it supports high-end edge computing use cases, such as machine vision, through its multimedia capabilities. This is enabled by the whole ST edge AI ecosystem offer.
It supports a wide junction temperature range, from - 40°C to 125°C, making it ideal for industrial and harsh environments.
Applications
Product types
The STM32MP2 series is available in seven different lines, which are pin-to-pin compatible. Each line features a security option (cryptography and secure boot with TrustZone®). The STM32MP2 product lines feature up to dual Arm Cortex®-A35 cores operating at up to 1.5 GHz, along with an Arm Cortex®-M33 core at 400 MHz.
The STM32MP2 lines come in four packages: TFBGA 436 (18x18 mm), TFBGA 361 (16x16 mm), VFBGA 424 (14x14 mm), and VFBGA 361 (10x10 mm).
The STM32MP2 series offers a set of hardware to help you get started with your design.
3 Ethernet ports, 3 FD-CAN, H.264 enc/dec, 3D GPU, AI/NN, LVDS/DSI display interfaces, security features (option)
2 Ethernet ports, 3 FD-CAN, H.264 enc/dec, 3D GPU, AI/NN, LVDS/DSI display interfaces, security features (option)
2 Ethernet ports, 3 FD-CAN, security features (option)
1 Ethernet port, security features (option)
2 Ethernet ports, 2 FDCAN interfaces, H.264 decoding, a 3D GPU, AI/NN capabilities, LVDS/DSI display interfaces, and security features (option)
2 Ethernet ports, 2 FDCAN interfaces and security features (option)
Single Ethernet port and security features (option)
Discover our portfolio
| Product lines | Arm Cortex®-A35 | Arm Cortex®-M33 | AI NPU | GPU LVDS/DSI | FD-CAN | Ethernet ports |
| STM32MP257 | 2 | 1 | * | * | 3 | 3 |
| STM32MP255 | 2 | 1 | * | * | 3 | 2 |
| STM32MP253 | 2 | 1 | 3 | 2 | ||
| STM32MP251 | 1 | 1 | 1 | |||
| STM32MP235 | 2 | 1 | * | * | 2 | 2 |
| STM32MP233 | 2 | 1 | 2 | 2 | ||
| STM32MP231 | 1 | 1 | 1 |
Discover our development tools for STM32MP2 series
Benefits
Enhanced security
- Advanced security features with certifications supporting security functions for IoT and industrial applications (SESIP3 certification target, TrustZone® on Arm Cortex®-A & Cortex®-M, secure isolation for edge confidential computing)
Supporting ecosystem for faster development
- Fast and easy application software porting thanks to the mainlined open-source Linux distribution based on Yocto: OpenSTLinux Android distribution
- STM32Cube toolset: STM32CubeMX (including code generation for Linux on Arm Cortex®-A35 and STM32Cube firmware on Arm Cortex®-M33), GCC-based IDEs and STM32CubeProgrammer with signing tools
High integration
- Optimized bill of materials (BOM) thanks to high integration, packages compatible with low-cost PCB technologies (down to 4-layers plated-through hole -PTH-PCBs) and a dedicated Power Management IC (STPMIC25)
An extensive third-party ecosystem
- Buildroot and OpenWRT supports are available via partners
- OpenBMC supports available on dedicated GitHub
- System-on-modules based on STM32MP2 from partners ST authorized partners: UI tool providers, secure software providers, training, and software services
STM32MP2 microprocessor series, with single/dual Arm Cortex®-A35 running up to 1.5GHz, Arm Cortex®-M33 and Cortex-M0+ processors, now support you to design richer applications with enhanced performance, more security, and advanced edge AI capabilities.
The Arm Cortex®-M33 operates at up to 400 MHz, and can serve as the bootable trusted domain, securing the system, isolating critical resources, and managing Cortex®-A35 startup and resets. The Arm Cortex®-M0+ on STM32MP25x runs up to 200 MHz or slows to 16 MHz for minimal power use, leveraging its SmartRun domain to enable low-power peripheral activity while other cores are stopped.
STM32MP2 microprocessor series, with single/dual Arm Cortex®-A35 running up to 1.5GHz, Arm Cortex®-M33 and Cortex-M0+ processors, now support you to design richer applications with enhanced performance, more security, and advanced edge AI capabilities.
This second generation of STM32 application processors opens the door to higher performances with a 64-bit platform, specifically designed for industrial applications requiring chip robustness in a connected and secure environment.
The STM32MP2 microprocessor portfolio comes in three main configurations:
- the STM32MP25x product line supports the growth of connected applications with extended connectivity.
- the STM32MP23x product line, a cost-optimized derivative of STM32MP25x.
- the STM32MP21x product line delivers essential MPU performance with optimized power consumption.
With the NPU accelerator, embedded in STM32MP25x and STM32MP23x, is it now possible to run AI applications on either the CPU, GPU, or NPU. Thanks to ST Edge AI ecosystem you can easily select, train, optimize and benchmark your AI model with AI tools (ST Edge AI Core desktop tool, ST Edge AI Developer Cloud online tool) before creating and deploying your application with X-LINUX-AI on your STM32 MPU boards.
The Arm Cortex®-M33 operates at up to 400 MHz, and can serve as the bootable trusted domain, securing the system, isolating critical resources, and managing Cortex®-A35 startup and resets. The Arm Cortex®-M0+ on STM32MP25x runs up to 200 MHz or slows to 16 MHz for minimal power use, leveraging its SmartRun domain to enable low-power peripheral activity while other cores are stopped.
This second generation of STM32 application processors opens the door to higher performances with a 64-bit platform, specifically designed for industrial applications requiring chip robustness in a connected and secure environment.
The STM32MP2 microprocessor portfolio comes in three main configurations:
- the STM32MP25x product line supports the growth of connected applications with extended connectivity.
- the STM32MP23x product line, a cost-optimized derivative of STM32MP25x.
- the STM32MP21x product line delivers essential MPU performance with optimized power consumption.
With the NPU accelerator, embedded in STM32MP25x and STM32MP23x, is it now possible to run AI applications on either the CPU, GPU, or NPU. Thanks to ST Edge AI ecosystem you can easily select, train, optimize and benchmark your AI model with AI tools (ST Edge AI Core desktop tool, ST Edge AI Developer Cloud online tool) before creating and deploying your application with X-LINUX-AI on your STM32 MPU boards.
Product types

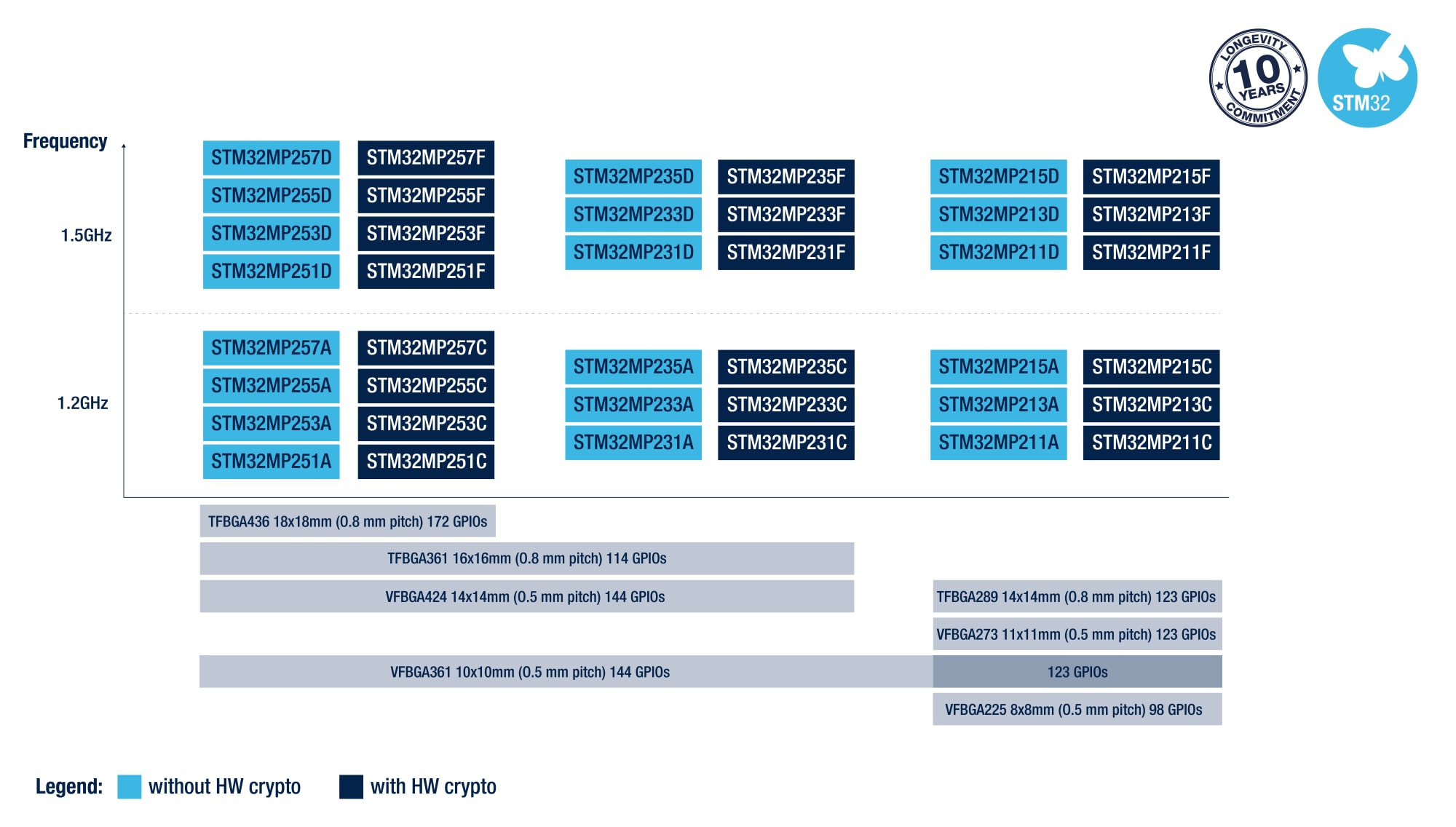

TThe STM32MP2 series offers ten product lines with extensive pin-to-pin compatibility. Each line includes a security option (cryptography and TrustZone® secure boot) and an extended frequency option (Cortex®-A35 up to 1.5 GHz and GPU/NPU up to 900 MHz for STM32MP25x).
Available in seven package types, from 18x18 mm to 8x8 mm with various pitches, the STM32MP2 supports a wide junction temperature range (-40°C to 125°C), ideal for industrial and harsh environments requiring long-term reliability.
3 Ethernet ports, 3 FD-CAN, H.264 enc/dec, 3D GPU, AI/NN, LVDS/DSI display interfaces, security features (option)
2 Ethernet ports, 3 FD-CAN, H.264 enc/dec, 3D GPU, AI/NN, LVDS/DSI display interfaces, security features (option)
2 Ethernet ports, 3 FD-CAN, security features (option)
1 Ethernet port, security features (option)
2 Ethernet ports, 2 FDCAN interfaces, H.264 decoding, a 3D GPU, AI/NN capabilities, LVDS/DSI display interfaces, and security features (option)
2 Ethernet ports, 2 FDCAN interfaces and security features (option)
Single Ethernet port and security features (option)
| Product lines | Arm Cortex®-A35 | Arm Cortex®-M33 | AI NPU | GPU LVDS/DSI | FD-CAN | Ethernet ports |
| STM32MP257 | 2 | 1 | * | * | 3 | 3 |
| STM32MP255 | 2 | 1 | * | * | 3 | 2 |
| STM32MP253 | 2 | 1 | 3 | 2 | ||
| STM32MP251 | 1 | 1 | 1 | |||
| STM32MP235 | 2 | 1 | * | * | 2 | 2 |
| STM32MP233 | 2 | 1 | 2 | 2 | ||
| STM32MP231 | 1 | 1 | 1 | |||
| STM32MP215 | 1 | 1 | 2 | 2 | ||
| STM32MP213 | 1 | 1 | 2 | 2 | ||
| STM32MP211 | 1 | 1 | 1 |
Discover our product portfolio
Applications
Discover our development tools for STM32MP2 series
Benefits
Enhanced security
- Advanced security features with certifications supporting security functions for IoT and industrial applications (SESIP3 certification target, TrustZone® on Arm Cortex®-A & Cortex®-M, secure isolation for edge confidential computing)
Supporting ecosystem for faster development
- Fast and easy application software porting thanks to the mainlined open-source Linux distribution based on Yocto: OpenSTLinux Android distribution
- STM32Cube toolset: STM32CubeMX (including code generation for Linux on Arm Cortex®-A35 and STM32Cube firmware on Arm Cortex®-M33), GCC-based IDEs and STM32CubeProgrammer with signing tools
High integration
- Optimized bill of materials (BOM) thanks to high integration, packages compatible with low-cost PCB technologies (down to 4-layers plated-through hole -PTH-PCBs) and a dedicated Power Management IC (STPMIC25)
An extensive third-party ecosystem
- Buildroot and OpenWRT supports are available via partners
- OpenBMC supports available on dedicated GitHub
- System-on-modules based on STM32MP2 from partners ST authorized partners: UI tool providers, secure software providers, training, and software services
Featured Videos
Discover the latest STM32 MPU, offering a power-efficient and heterogeneous architecture with up to dual Arm Cortex®-A35 cores running at up to 1.5 GHz, and an Arm Cortex®-M33 core running at up to 400 MHz.
90-seconds dive into STM32 MPUs
