STEVAL-PTOOL1V1 and STEVAL-PTOOL2V1 are two ready-to-use system solutions tailored for power and garden tools driven by 3-phase brushless motors and supplied respectively from 2S to 6S and from 8S to 15S battery packs.
Discover 2 reference designs implementing a set of functionalities and architecture solutions required by power tools.

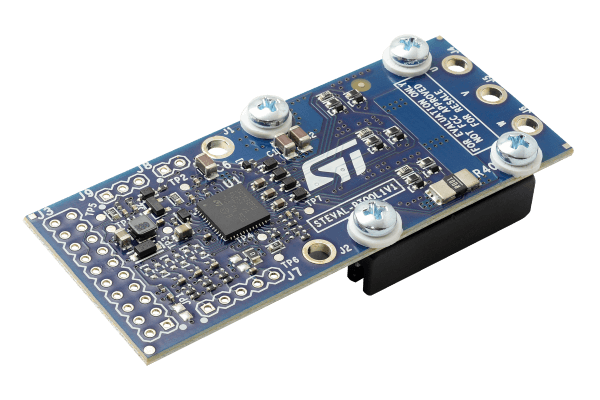

STEVAL-PTOOL1V1 - Compact ready-to-use reference design for low voltage 2S-6S power tools
Highly compact 70 x 30mm (2 3/4 x 1 3/16") reference design ready to reduce the size and improve the efficiency and performance of your 3-phase brushless motor power and garden tool application in the 2S to 6S battery pack range. Implement immediate 6-step control with sensor position feedback or run your own FOC algorithms with or without sensors. Comprehensive heat management and protections are of course all integral to the solution.
Key features of STEVAL-PTOOL1V1
- Targets power tools supplied from 2S to 6S battery packs
- Can deliver up to 15A of continuous current
- Features very low standby current consumption (< 1 µA)
- Based on STSPIN32F0B, advanced 3-phase motor controller
- Comes with companion six-steps firmware with Hall-effect sensors feedback
- Extremely compact footprint (70 mm x 30 mm)
- See all STEVAL-PTOOL1V1 features

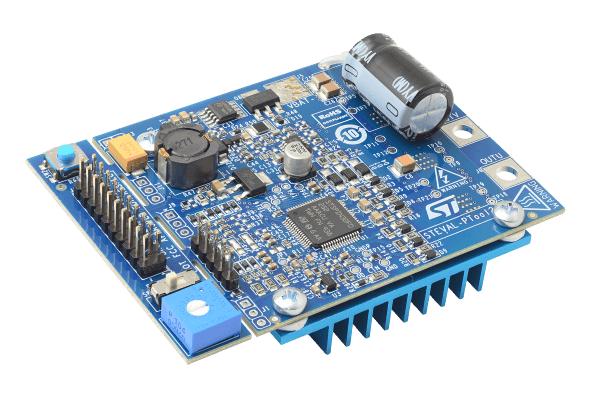

STEVAL-PTOOL2V1 - Compact reference design for battery-operated 8S-15S power tools
Our ready-to-use solution for heavy-duty cordless power tool applications frees developers from complex design considerations involving size constraints, heat, efficiency, control and feedback for high performance operation with guaranteed reliability. Ideal for compact higher voltage motor control applications up to 56V, supplied by 8S to 15S battery packs.
Key features of STEVAL-PTOOL2V1
- Can deliver up to 19 A of continuous current
- Based on STSPIN32F0252, motor controller which embeds a Cortex®-M0 STM32 MCU, 3 phase 250 V / 1 A gate driver, OCP with smartShutDown and outstanding below-ground performance
- Comes with companion six-steps firmware with Hall-effect sensors feedback
- Quite compact footprint (80 mm x 58 mm)
- Targets power tools supplied from 8S to 15S battery packs
- See all STEVAL-PTOOL2V1 features
