The STM32WBAxM modules are cost-effective, ultra-low-power, small form factor, certified 2.4 GHz wireless modules designed for multiprotocol applications.
They support a range of protocols, including Bluetooth® LE, Zigbee® 3.0, Zigbee direct, OpenThread, with dynamic and static concurrent modes. These modules are based on the STM32WBA wireless microcontrollers, offering best-in-class RF performance with excellent receiver sensitivity and high output power.
Fully part of the STM32WBA portfolio, the STM32WBAxM modules are included in ST’s longevity program, ensuring a continuous supply for 10 years, renewed annually.
Applications
.png)
.png)
Product types
The STM32WBA5M wireless module is built on the STM32WBA55 microcontroller and features an Arm 32-bit Cortex®-M33 at 100 MHz CPU with TrustZone®, MPU, DSP, and FPU.
It offers programmable output power up to +10 dBm with 1 dB steps and impressive Rx sensitivity of -96 dBm for Bluetooth® LE at 1 Mbit/s and -97.5 dBm for IEEE 802.15.4 at 250 Kbit/s.

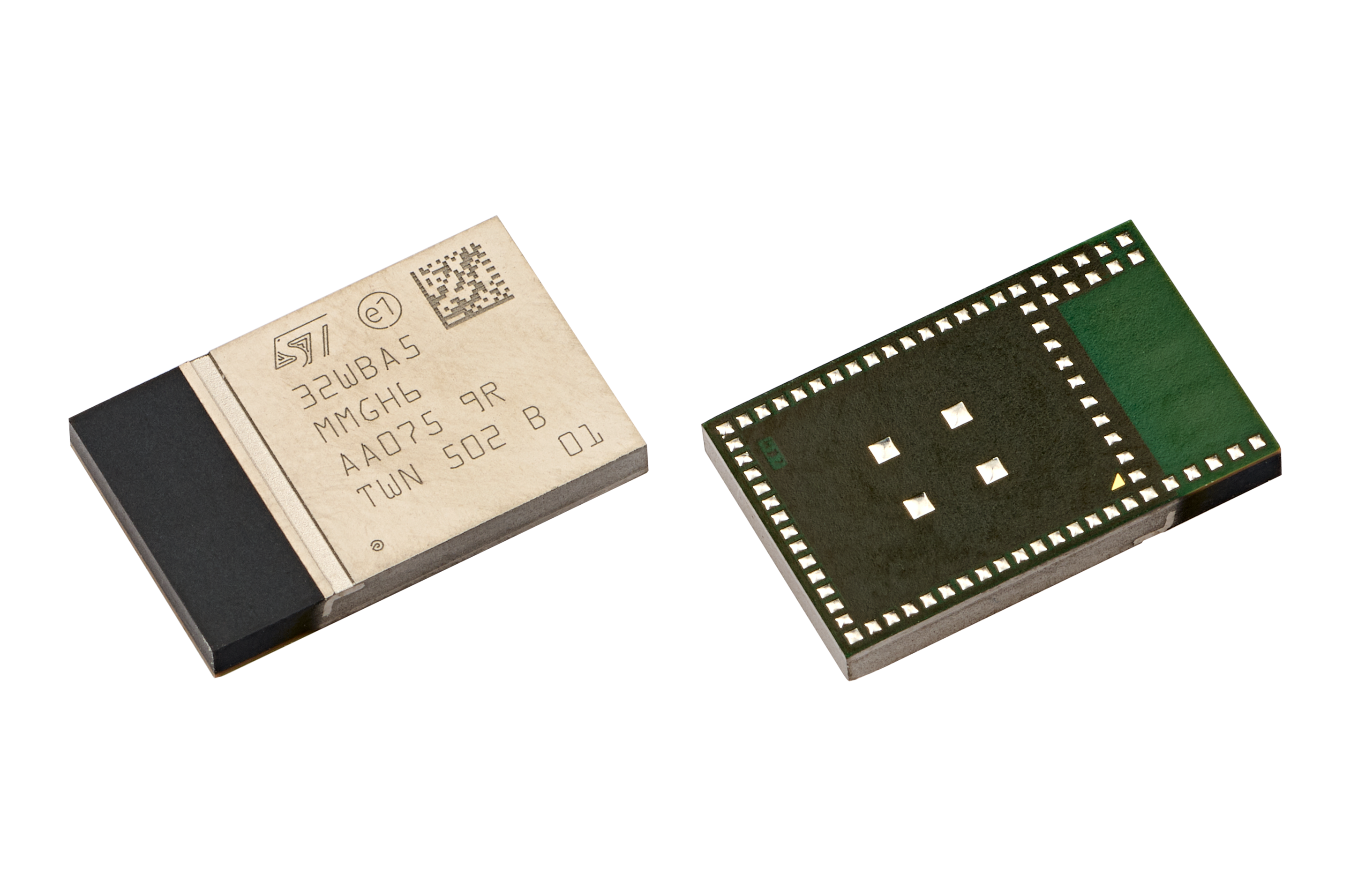

The STM32WBA5M module comes in a SiP-LGA76 (8 x 12.5 mm) package. It is a cost-effective, ultra-low-power, small form factor, certified 2.4 GHz wireless module.
The module includes a fully integrated BOM with 32 MHz and 32 kHz crystals, and an integrated antenna with IPD for best-in-class and reliable antenna matching, with an option for external antenna configuration. It is widely certified (CE, FCC, ISED, etc.) and completely protocol stack royalty-free.

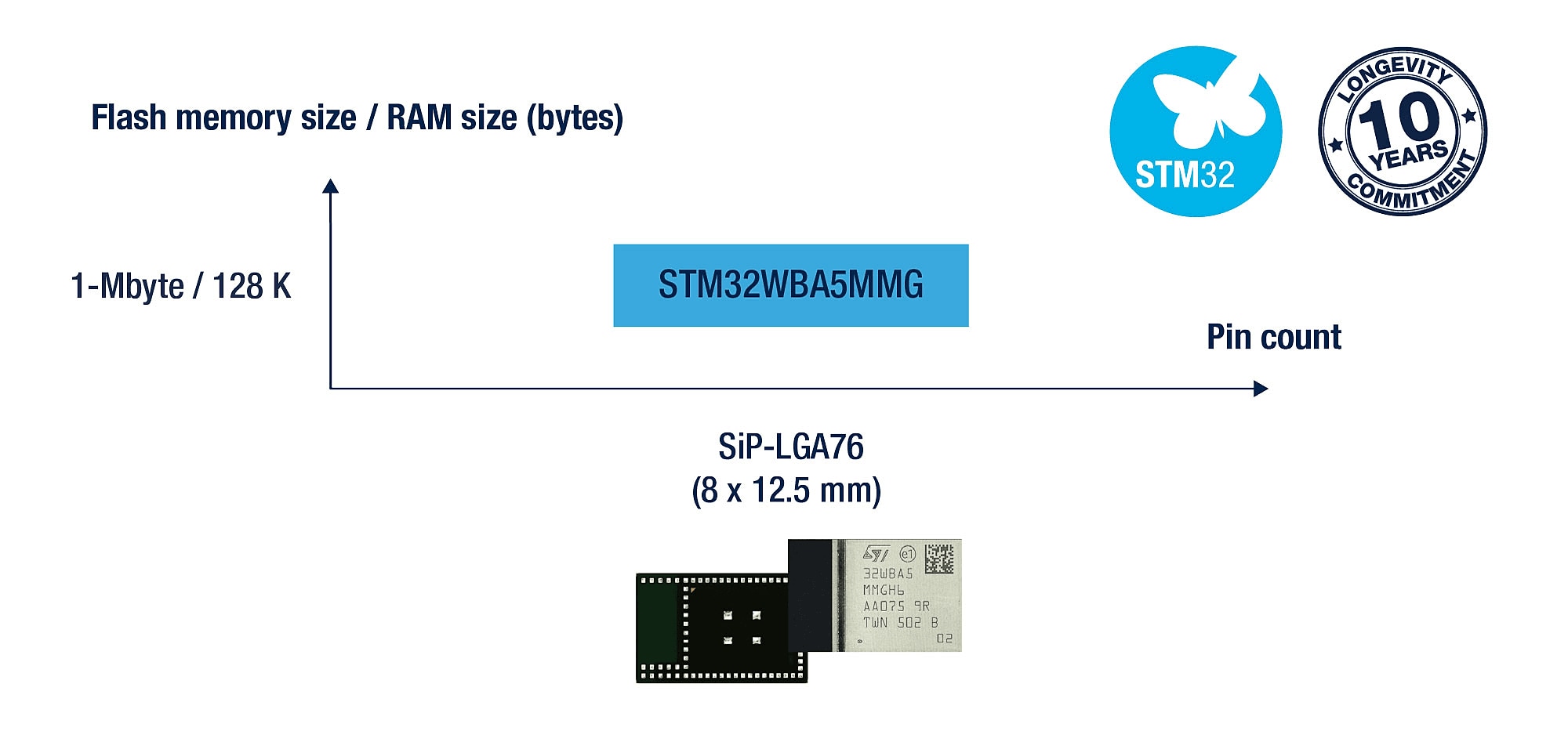

Discover our portfolio
Benefits
Compact design and integration
• Fully integrated BOM: includes 32 MHz and 32 kHz crystals, requiring only one external capacitor for simplicity
• Integrated antenna with IPD provides best-in-class and reliable matching, with an external antenna option
• Advanced connectivity module: supports Bluetooth® LE, IEEE 802.15.4 for Thread and Zigbee®, with concurrent modes within a single-core solution. Features enhanced security and a tiny form factor.
Cost efficiency and market readiness
• Accelerated time to market: drastic cost reduction with a fully certified module enabling a 2-layer PCB design.
• Comprehensive certifications: CE, FCC, ISED, MIC, RoHS, REACH, ensuring market readiness and compliance.
Comprehensive support and ecosystem
• Fully supported within the STM32Cube ecosystem with free of charge connectivity stack, allowing to streamline development processes.
Discover our comprehensive ecosystem
STM32Cube firmware package

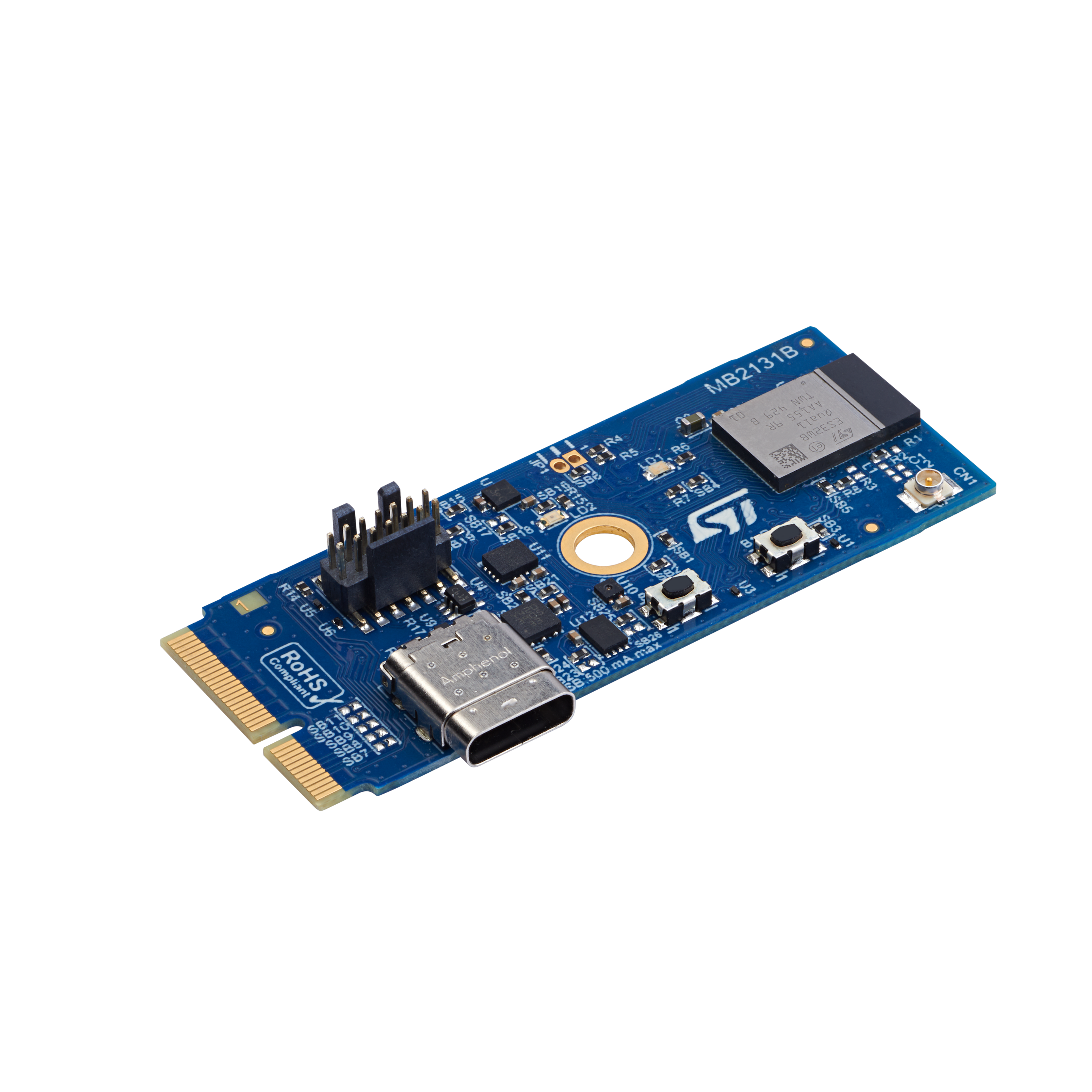

Connectivity expansion board
Featured Videos
Allowing the concomitant use of Bluetooth® LE and IEEE 802.15.4 standards on a single chip, the STM32WBA6 is ideal for applications that leverage Matter, which is designed to run on top of other protocols.
