VD6283TX

Active
Education

Hybrid filter multispectral sensor with light flicker engine

Download datasheet Order Direct
Overview
Online design
Sample & Buy
Solutions
Documentation
CAD Resources
Tools & Software
Quality & Reliability
Partner products
Sales Briefcase

Product overview

Description

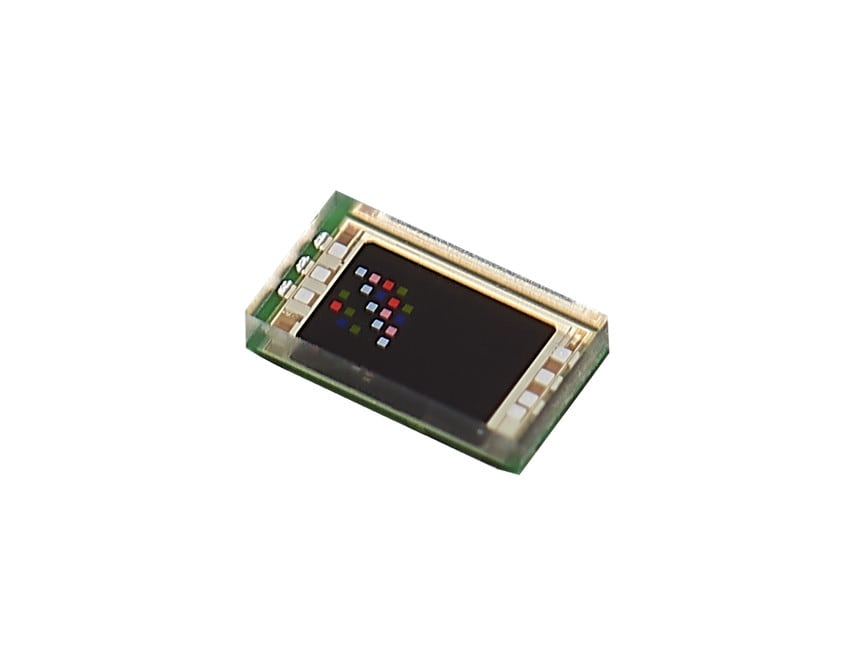

The VD6283 (1.83 x 1.0 x 0.55 mm) is ST's new color sensor with advanced light flicker extraction. Light measurement is fast and accurate thanks to an individual ADC and a readout for each color channel. The VD6283 uses hybrid color filters with precise responses allowing accurate computation of the correlated color temperature (CCT) and Lux information. The VD6283 can be used for display brightness management or scene light correction. With a patented architecture and a high-performance photodiode design, the VD6283 can extract light flickering frequencies to avoid “banding effects” on videos, or check that they are safe for human eye. Additionally, the VD6283 is the only sensor able to extract different light flicker waveforms from 100 Hz and 2 kHz, including LED square signals, that can run flicker operations simultaneously with ALS operations.
  • All features

    • Miniature optical module
      • 1.83 x 1.0 x 0.55 mm
      • Optical BGA, 6-balls, reflowable package
      • Operates with cover glass on top
    • ALS operation with 6 independent channels
      • Advanced hybrid filters with high photocount response
      • Parallel sensing of all channels: red, green, blue, IR, clear, and visible
      • Operating conditions: 7 mLux to 30 kLux (green channel)
    • Light flicker extraction
      • Innovative readout architecture to extract AC light flicker signal
      • From 100 Hz to 2 kHz frequency detection, sine or square wave
    • Software driver provided by ST
    • I2C interface up to 1 Mbit/s (Fast mode plus)
    • 1.8 V power supply
    • Low-power consumption
    • Operating temperature -30 to 85 °C

You might also like...

All tools & software

    • Part number
      Status
      Description
      Type
      Supplier

      STSW-IMG301

      Active

      P-NUCLEO-6283A1 pack graphical user interface (GUI)

      Imaging Software ST
      STSW-IMG301

      Description:

      P-NUCLEO-6283A1 pack graphical user interface (GUI)

      STSW-IMG302

      Active

      VD6283 6-channel ambient light sensor, with flicker extraction expansion application programming interface (API)

      Imaging Software ST
      STSW-IMG302

      Description:

      VD6283 6-channel ambient light sensor, with flicker extraction expansion application programming interface (API)
    • Part number
      Status
      Description
      Type
      Supplier

      P-NUCLEO-6283A1

      Active

      VD6283 Nucleo pack with X-NUCLEO-6283A1 expansion board and STM32-F401RE Nucleo board

      Imaging Evaluation Boards ST
      P-NUCLEO-6283A1

      Description:

      VD6283 Nucleo pack with X-NUCLEO-6283A1 expansion board and STM32-F401RE Nucleo board

      VD6283TX-SATEL

      Active

      VD6283 breakout board 6-channel ambient light sensor with advanced light flicker extraction

      Imaging Evaluation Boards ST
      VD6283TX-SATEL

      Description:

      VD6283 breakout board 6-channel ambient light sensor with advanced light flicker extraction

      X-NUCLEO-6283A1

      Active

      6-channel ambient light sensor, with flicker extraction expansion board based on VD6283 for STM32 Nucleo

      Imaging Evaluation Boards ST
      X-NUCLEO-6283A1

      Description:

      6-channel ambient light sensor, with flicker extraction expansion board based on VD6283 for STM32 Nucleo
    • Part number
      Status
      Description
      Type
      Supplier

      X-CUBE-ALS

      Active

      Ambient light sensors (ALS) software expansion for STM32Cube

      STM32 ODE Sense SW ST
      X-CUBE-ALS

      Description:

      Ambient light sensors (ALS) software expansion for STM32Cube

EDA Symbols, Footprints and 3D Models

STMicroelectronics - VD6283TX

Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.

Symbols

Symbols

Footprints

Footprints

3D model

3D models

Quality and Reliability

Part Number Marketing Status Package Grade RoHS Compliance Grade Material Declaration**
VD6283TX45/1
Active
WLCSP T-SHAPE Industrial Ecopack2

VD6283TX45/1

Package:

WLCSP T-SHAPE

Material Declaration**:

Marketing Status

Active

Package

WLCSP T-SHAPE

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.

Sample & Buy

Part Number
Order from Distributors
Order from ST
Marketing Status
ECCN (US)
ECCN (EU)
Packing Type
Package
Temperature (°C) Country of Origin
Budgetary Price (US$)*/Qty
min
max
VD6283TX45/1 Available at 4 distributors

Distributor availability ofVD6283TX45/1

Distributor Name
Region Stock Min. Order Third party link
DIGIKEY WORLDWIDE 5113 1 Buy from Distributor
MOUSER WORLDWIDE 4776 1 Buy from Distributor
Farnell Element14 EUROPE 219 1 Buy from Distributor
ANGLIA Live EUROPE 100 5000 Buy from Distributor

Distributor reported inventory date: 2021-10-27

Distributor Name

DIGIKEY

Stock

5113

Min.Order

1

Region

WORLDWIDE Buy from Distributor

MOUSER

Stock

4776

Min.Order

1

Region

WORLDWIDE Buy from Distributor

Farnell Element14

Stock

219

Min.Order

1

ANGLIA Live

Stock

100

Min.Order

5000

Distributor reported inventory date: 2021-10-27

Buy Direct
Active
EAR99 NEC Tape And Reel WLCSP T-SHAPE -30 85 TAIWAN 1.47 / 5k

VD6283TX45/1

Marketing Status

Active

ECCN (US)

EAR99

Budgetary Price (US$)*/Qty

1.47 / 5k

Distributor availability ofVD6283TX45/1

Distributor Name
Region Stock Min. Order Third party link
DIGIKEY WORLDWIDE 5113 1 Buy from Distributor
MOUSER WORLDWIDE 4776 1 Buy from Distributor
Farnell Element14 EUROPE 219 1 Buy from Distributor
ANGLIA Live EUROPE 100 5000 Buy from Distributor

Distributor reported inventory date: 2021-10-27

Distributor Name

DIGIKEY

Stock

5113

Min.Order

1

Region

WORLDWIDE Buy from Distributor

MOUSER

Stock

4776

Min.Order

1

Region

WORLDWIDE Buy from Distributor

Farnell Element14

Stock

219

Min.Order

1

ANGLIA Live

Stock

100

Min.Order

5000

Distributor reported inventory date: 2021-10-27

ECCN (EU)

NEC

Packing Type

Tape And Reel

Package

WLCSP T-SHAPE

Operating Temperature (°C)

(min)

-30

(max)

85

Budgetary Price (US$)* / Qty

1.47 / 5k

Country of Origin

TAIWAN

(*) Suggested Resale Price (USD) per defined quantity for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office or our Distributors
